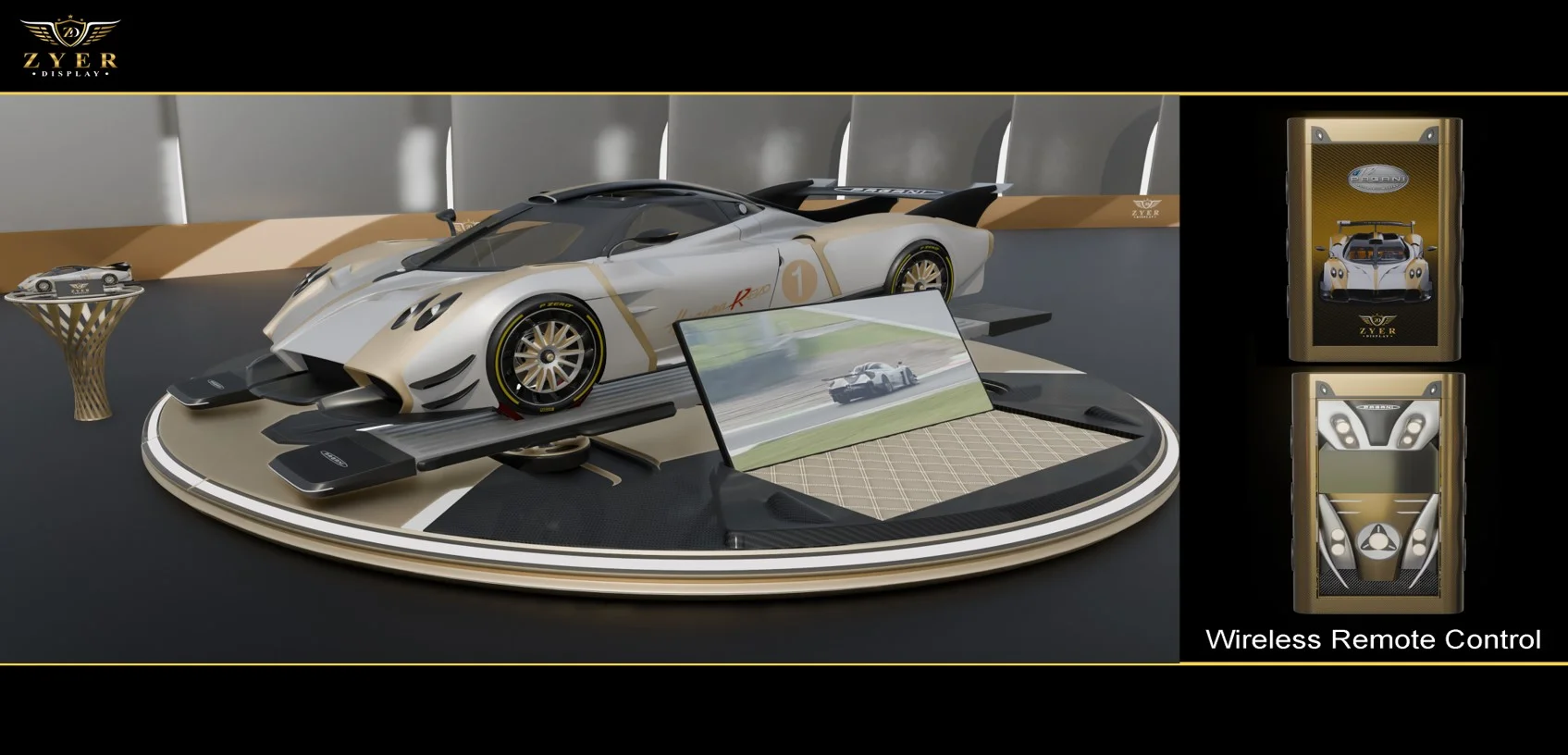

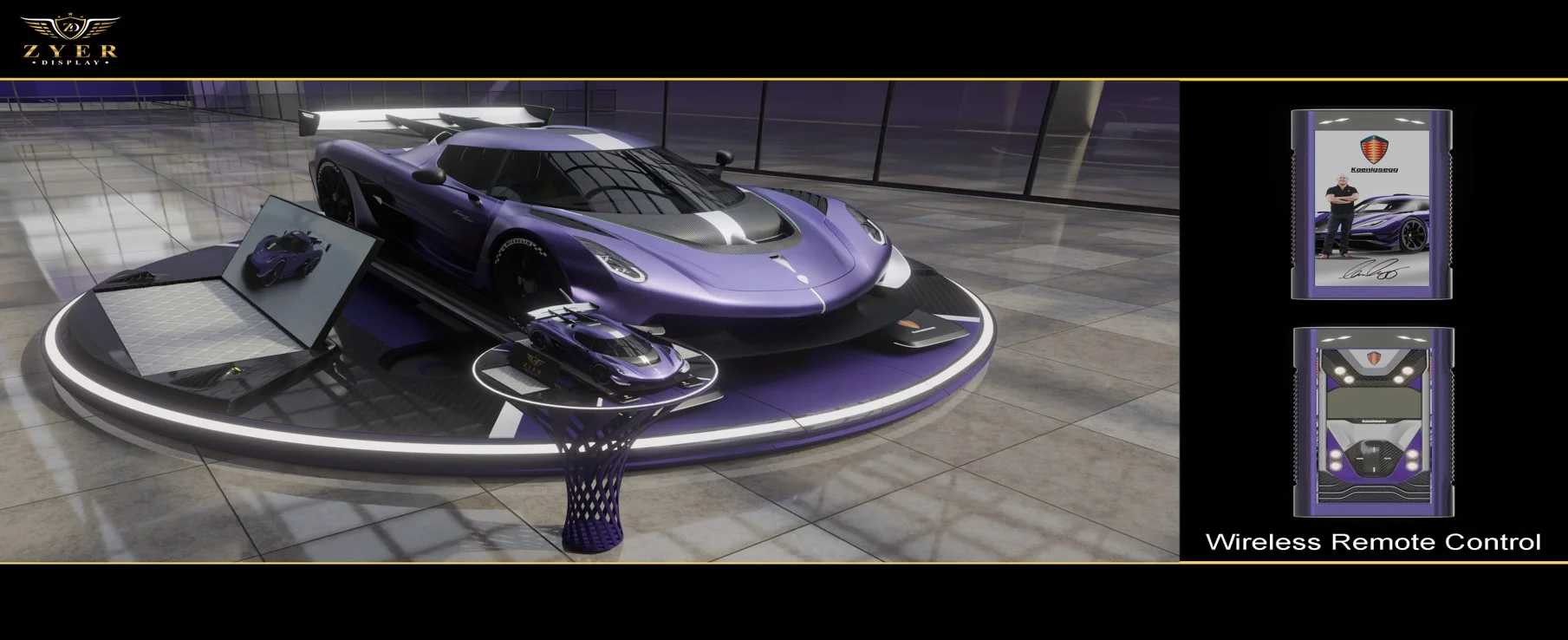

For enhanced presentation, The Monarch X1 incorporates six undercarriage-mounted 4K ultra-high-definition cameras, offering real-time multi-angle imaging of the vehicle’s underside. Visual output is transmitted to dual customized display monitors, delivering high-resolution, color-accurate renderings suitable for exhibition purposes. System control is managed through a bespoke wireless handheld interface, utilizing encrypted communication protocols and an intuitive human-machine interface (HMI) for precise, remote operation of all mechanical and visual subsystems. Using the handheld remote, users can preprogram multiple operational parameters and synchronized sequences, including tilt angle, LED mood lighting profiles, video playback content, rotational velocity, and automated start/stop commands from any positional state within the system’s operating envelope.
At its core, the system is driven by four high-torque electric actuators, delivering a combined lifting capacity of 15,000 pounds via a synchronized load-balancing mechanism. The vertical displacement system provides a controlled lift height of up to 12 inches, utilizing closed-loop feedback for stability and positional accuracy. A fully integrated 360-degree rotational subsystem, paired with a multi-stage 3-speed gearbox, allows both clockwise and counterclockwise rotation with variable torque modulation and smooth angular acceleration profiles.

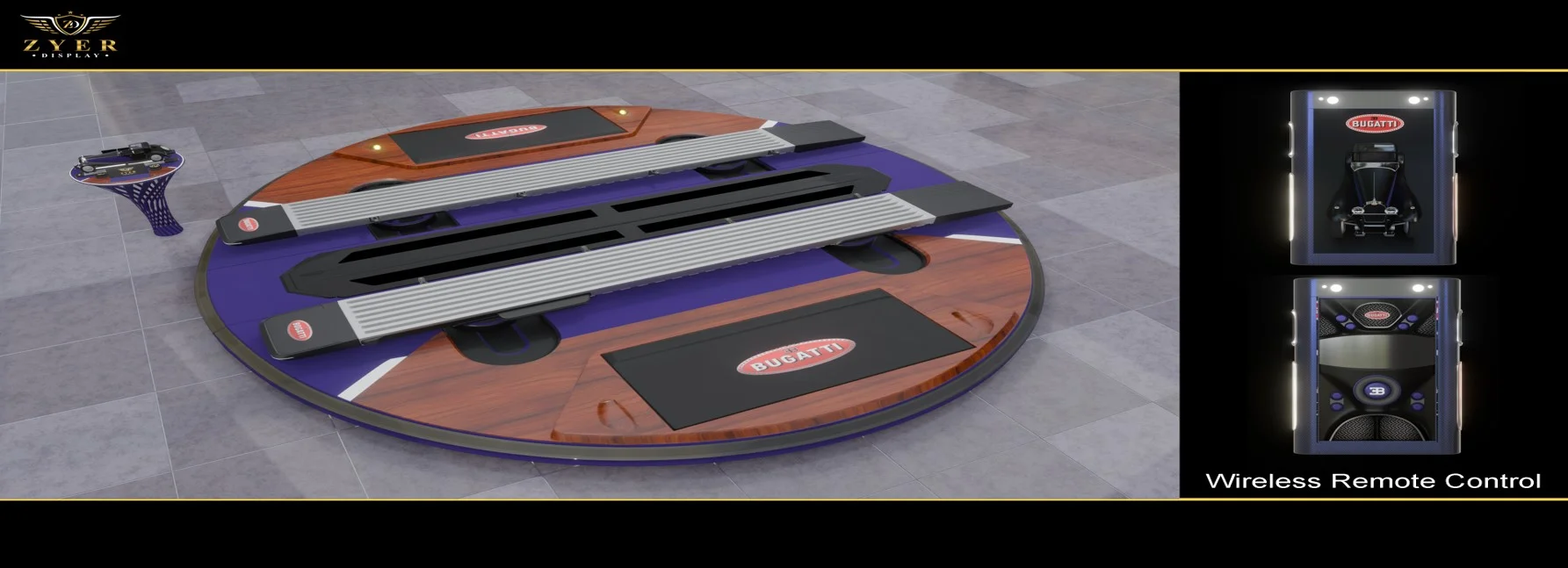

Safety and operational efficiency are enhanced through automated wheel-chocking mechanisms, which deploy dynamically to secure the vehicle during elevation and rotation sequences. Motorized loading ramps, actuated via embedded linear drive systems, facilitate seamless ingress and egress. The platform is further equipped with high-intensity LED safety guidance lighting, strategically positioned to provide visual alignment cues and hazard indication in low-visibility environments.
